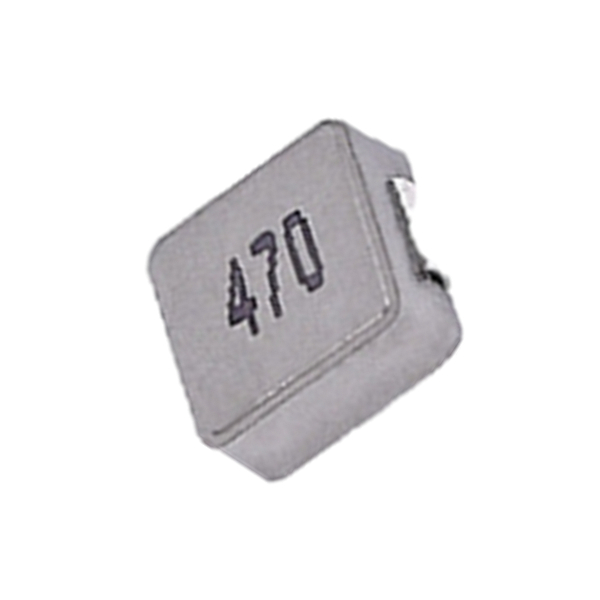

Chip Integrated Circuit Inductor 10uH , High Current smd power inductor

Molding Power Choke SMD Inductors Chip Integrated Circuit Inductor High Current alloy powder

SMD Power Inductor Original Smd Alloy Powder Molded Chip Integrated Circuit Ic 1.0uH~4.7uH

Molding Power Choke SMD Inductors Chip Integrated Circuit Inductor High Current Alloy Powder

Features:

• Magnetically shielded construction, low DC resistance；
• The use of magnetic iron powder ensure capability for large current；
• Low audible core noise；
• Ideal for DC-DC converter applications in hand held personal computer and etc；
• Handles high transient current spikes without saturation
• Ultra low buzz noise, due to composite construction
• Ultra-thin size, can be applied to MINI products
• Small tolerance, no heat generation, convenient production

Applications:

• Smart phone,MID；
• Next-generation mobile devices with multifunction such as adding color TV and digital movie cameras；
• Flat-screen TVs, blue-ray disc recorders, set top box；
• Notebooks, desktop computers, servers, graphic cards；
• Portable gaming devices, personal navigation systems, personal multimedia devices；
• Automotive systems；
• Bluetooth Products

Specification:

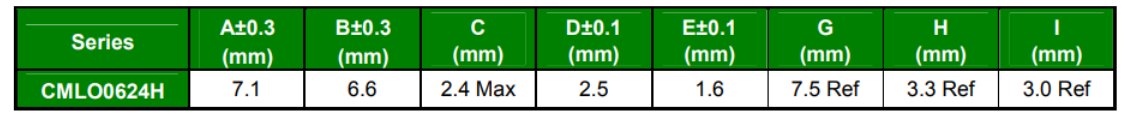

Dimensions

Specification

Packaging Information:

NOTES:

• DC current (Idc) that will cause an approximate △T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 20%
• All test data is referenced to 25℃ ambient
• Operating Temperature Range -55℃ to +120℃
• The part temperature (ambient + temp rise) should not exceed 120℃ under the worst operating conditions.
• Circuit design, component placement, PWB trace size and thickness, airflow and other cooling provisions
• all affect the part temperature. Part temperature should be verified in the end application.

Packaging Quantity(pcs)

Chip Integrated Circuit Inductor

10uH Integrated Circuit Inductor

High Current smd power inductor
